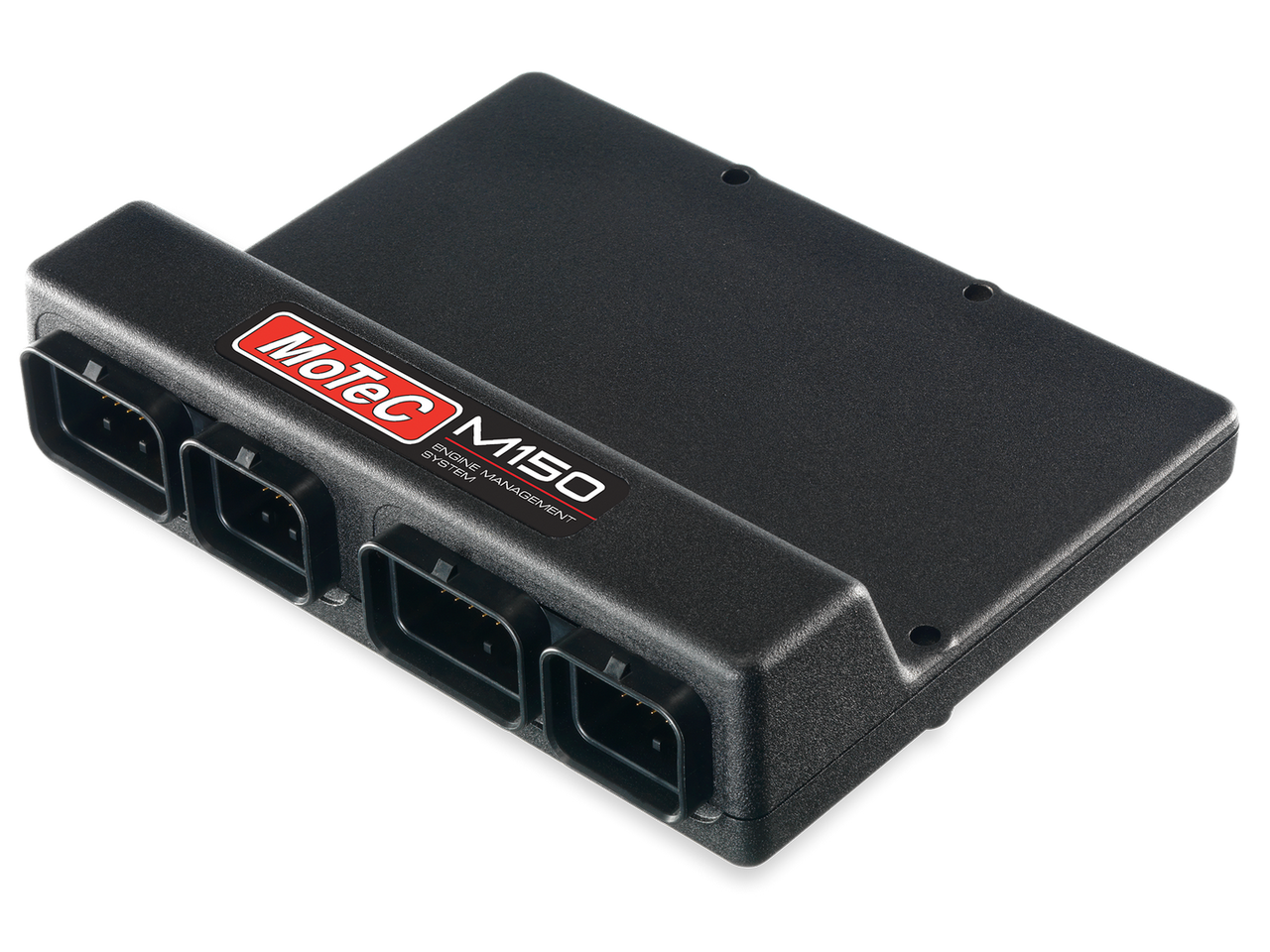

MoTeC M150 Engine Management System

Basic M150 Specifications

Injectors:

Peak & Hold Injector Outputs: 12
Low Side Injector Outputs: 6

Ignition:

Low Side Ignition Outputs : 12

Auxiliary Outputs:

Half Bridge Outputs: 10

Inputs:

Universal Digital Inputs: 12
Digital Inputs: 4
Analogue Voltage Inputs: 17
Analogue Temperature Inputs: 6
Knock Inputs: 4
Lambda (Narrow Band): 2

Data:

CAN Bus: 3
RS232: 1
LIN: 1
Logging Memory: 250MB
