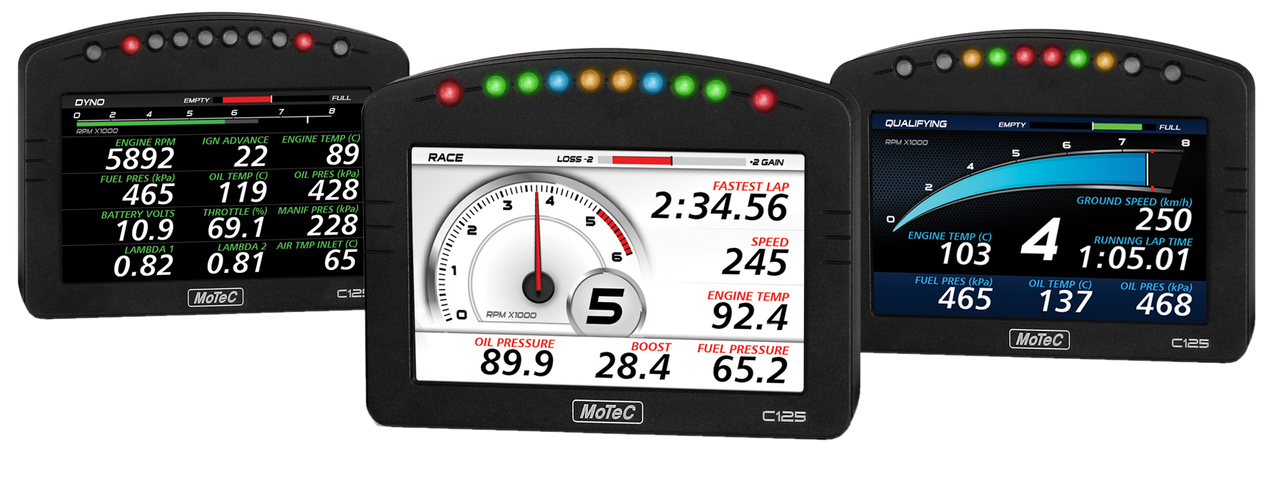

MoTeC C125 Colour Display (5")

For full customisation of the display layout and graphics, add the Display Creator option. See examples.

• Screen: Colour TFT LCD, anti-reflective
• Resolution: 800 x 480, anti-aliased graphics
• Selectable fixed layouts with channel and label configurability

• 48 user-defined, scrollable message lines with programmable overrides
• 3 programmable 'pages', for example Practice, Warm-Up, Race

Communications

• 2 x Configurable CAN buses with individually programmable CAN bus speeds
• One can be used as RS232 Receive
• RS232: 2 x RS232 ports
• One with Transmit and Receive
• One with Receive only


Physical

• Dimensions 134.5 x 101.8 x 19.4 mm excluding connector

• Weight 342 g

• 1 x 34 pin waterproof connector
• 1 x Mini USB port
• Housing: IP67 rated
• Diffused LEDs


Logging (optional - requires Logging Upgrade/s)

• Level 1: 120 MB logging memory
• Level 2: USB Logging to a removable storage device (flash drive)
• 32 GB USB storage devices available
• requires compatible hardware*

• Logging rates up to 500 samples per second
• Fast Ethernet download
• Includes i2 Standard data analysis software (i2 Pro available as an upgrade)

Inputs

• 2 x Digital inputs
• 3 x Speed inputs
• 1 x Composite Video Input for the connection of a PAL or NTSC camera*

Inputs (optional - requires I/O Upgrade)

• 6 x Analogue voltage inputs
• 2 x Analogue temperature inputs

Outputs (optional - requires I/O Upgrade)

• 4 x Low side outputs
• PWM or switched operation

Internal Sensors

• 3-axis G sensor
• Dash temperature sensor
• Sensor supply voltage
• Battery voltage
