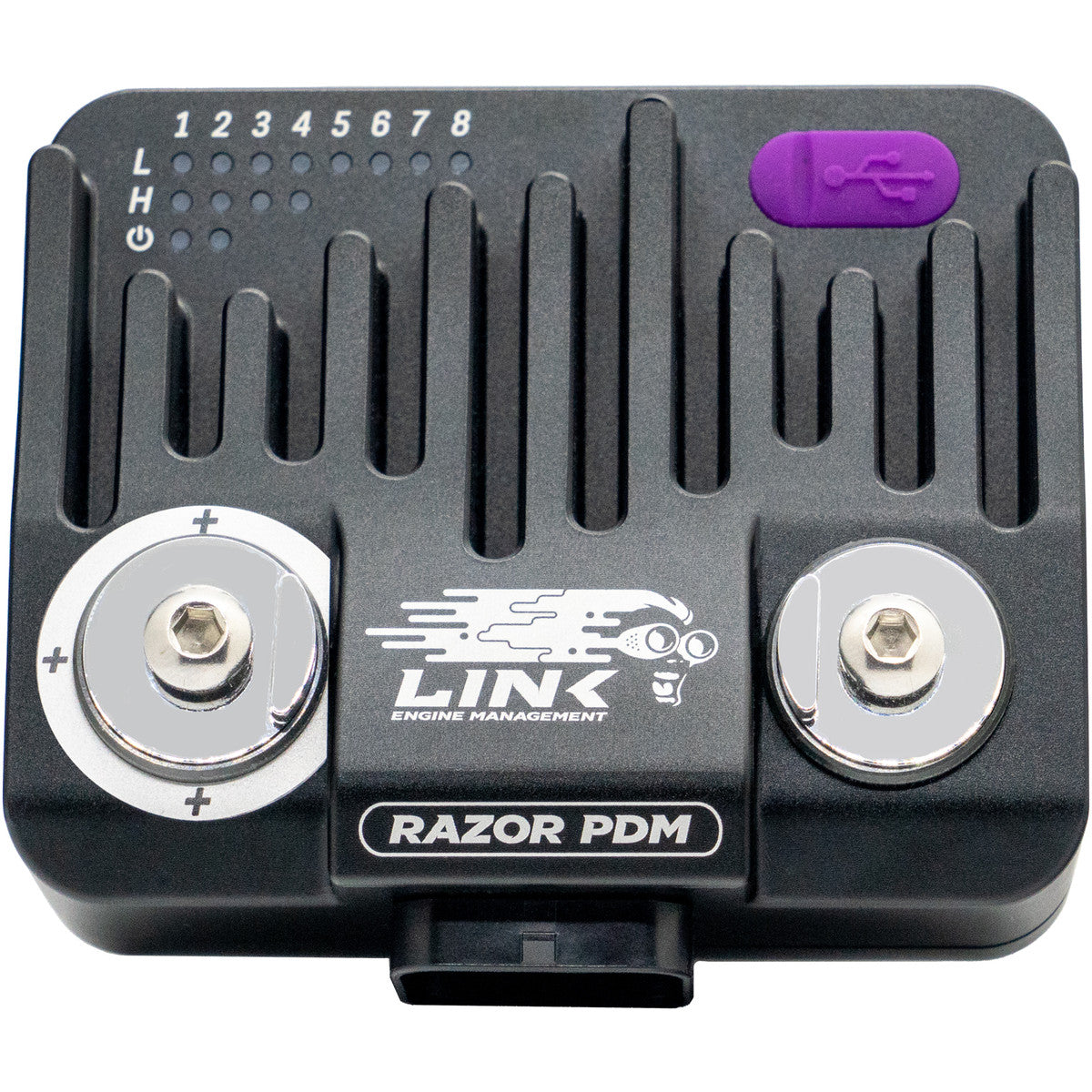

Link Razor PDM
Regular price
$1,546.75 NZD
Regular price
Sale price
$1,546.75 NZD
Unit price
per
Tax included.
Couldn't load pickup availability
• Can be used in conjunction with a Link ECU or as a completely standalone device
• 4 high power outputs capable of 25A continuous, PWM, high side drive, low side drive, or paired for H-bridge actuator motor control
• 8 Universal A/D I/O pins, capable of 8A output each or as analog or digital inputs. Software controlled pull-ups and adjustable switching thresholds when used as inputs
• Over-Current and Short Circuit Protection, with configurable trip and resettable fuse parameters
• Flexible and powerful control strategies including internal general purpose PID control, math functions, logic expressions and CAN keypad functions
• CAN keypad integration and flexible button logic, buttons can control PDM or Link ECU functions (G4X or G4+ with some limitations)
• Logging support via CAN or USB
• Multiple PDM support - Add additional units and simply connect via CAN
• USB Configuration via PDM Link software (Windows only)
• 26 pin Superseal connector
• Fully sealed CNC aluminium enclosure.
• 4 high power outputs capable of 25A continuous, PWM, high side drive, low side drive, or paired for H-bridge actuator motor control
• 8 Universal A/D I/O pins, capable of 8A output each or as analog or digital inputs. Software controlled pull-ups and adjustable switching thresholds when used as inputs
• Over-Current and Short Circuit Protection, with configurable trip and resettable fuse parameters
• Flexible and powerful control strategies including internal general purpose PID control, math functions, logic expressions and CAN keypad functions
• CAN keypad integration and flexible button logic, buttons can control PDM or Link ECU functions (G4X or G4+ with some limitations)
• Logging support via CAN or USB
• Multiple PDM support - Add additional units and simply connect via CAN
• USB Configuration via PDM Link software (Windows only)
• 26 pin Superseal connector
• Fully sealed CNC aluminium enclosure.
