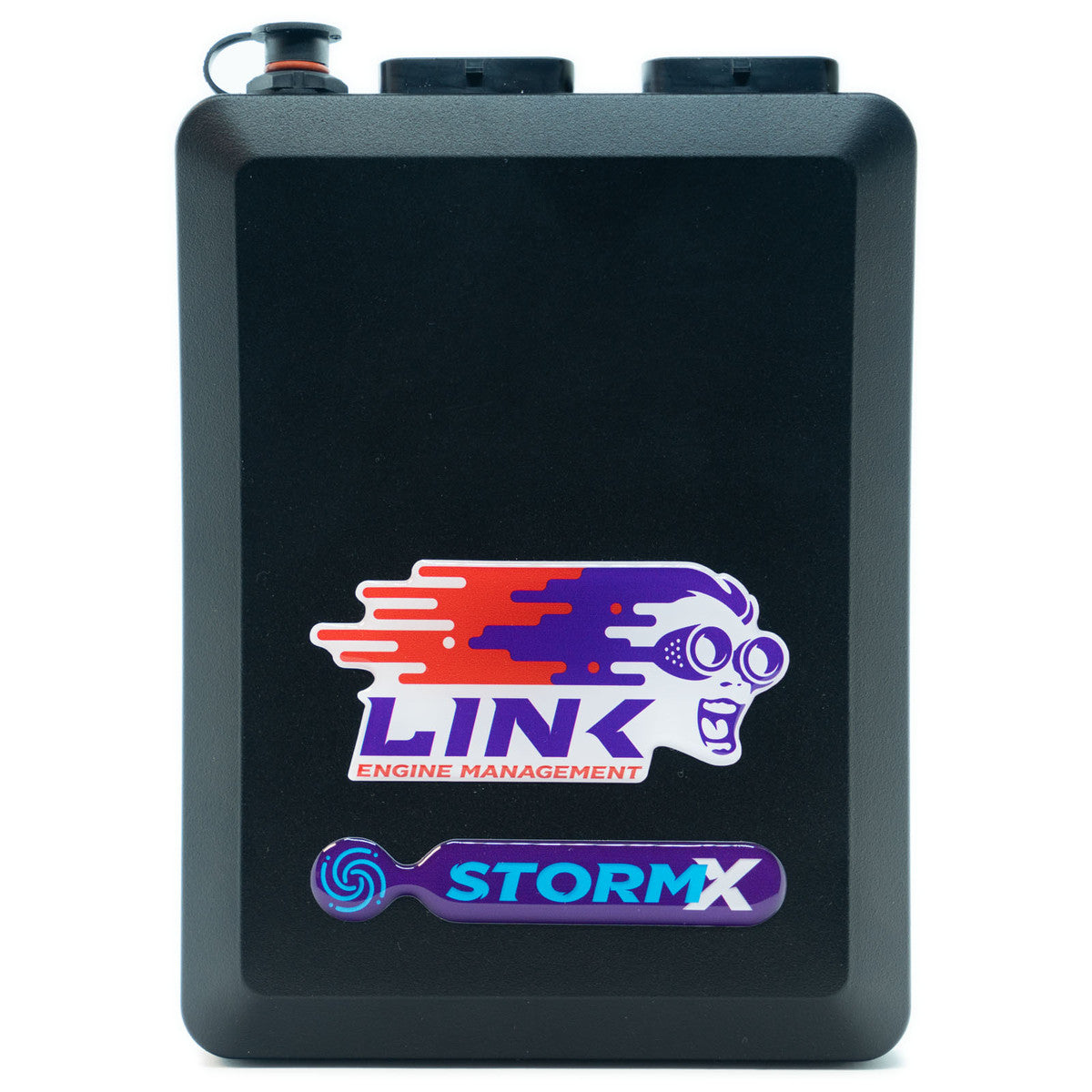

Link G4X StormX

The StormX is ideal for:

1-8 Cylinder Direct Spark

Odd Fire Engines

2-Stroke Engines

Configurable Firing Order

Configurable TDC Points (for odd fire)

Inputs

8 x Digital inputs

3 x Temperature inputs

8 x Analog inputs

2 x Trigger Inputs

2 x Knock Inputs

Outputs

8 x Injection drives

8 x Ignition drivers

8 x Auxiliary outputs^

+5V Sensor power supply

+8V Sensor power supply

^unused fuel and ignition drives can be used as additional Aux outputs

Communications

1 x CAN bus

1 x USB tuning connection

Upgraded communications chip (at least 8 x faster than G4+ V2)

Advanced features not found on the smaller Link ECUs (AtomX and MonsoonX):

Built in trigger oscilloscope.

Onboard Knock Control – support for two knock sensors wired directly to the ECU.  No external amplifier required.

Boost control can be open or closed loop with up to three switchable tables.

Idle valve solenoid or stepper motor control.

Rotary oil metering pump control.

Most Motorsport features including full gear shift control, antilag and launch control

Up to 4 fully variable closed loop VVT cams.
