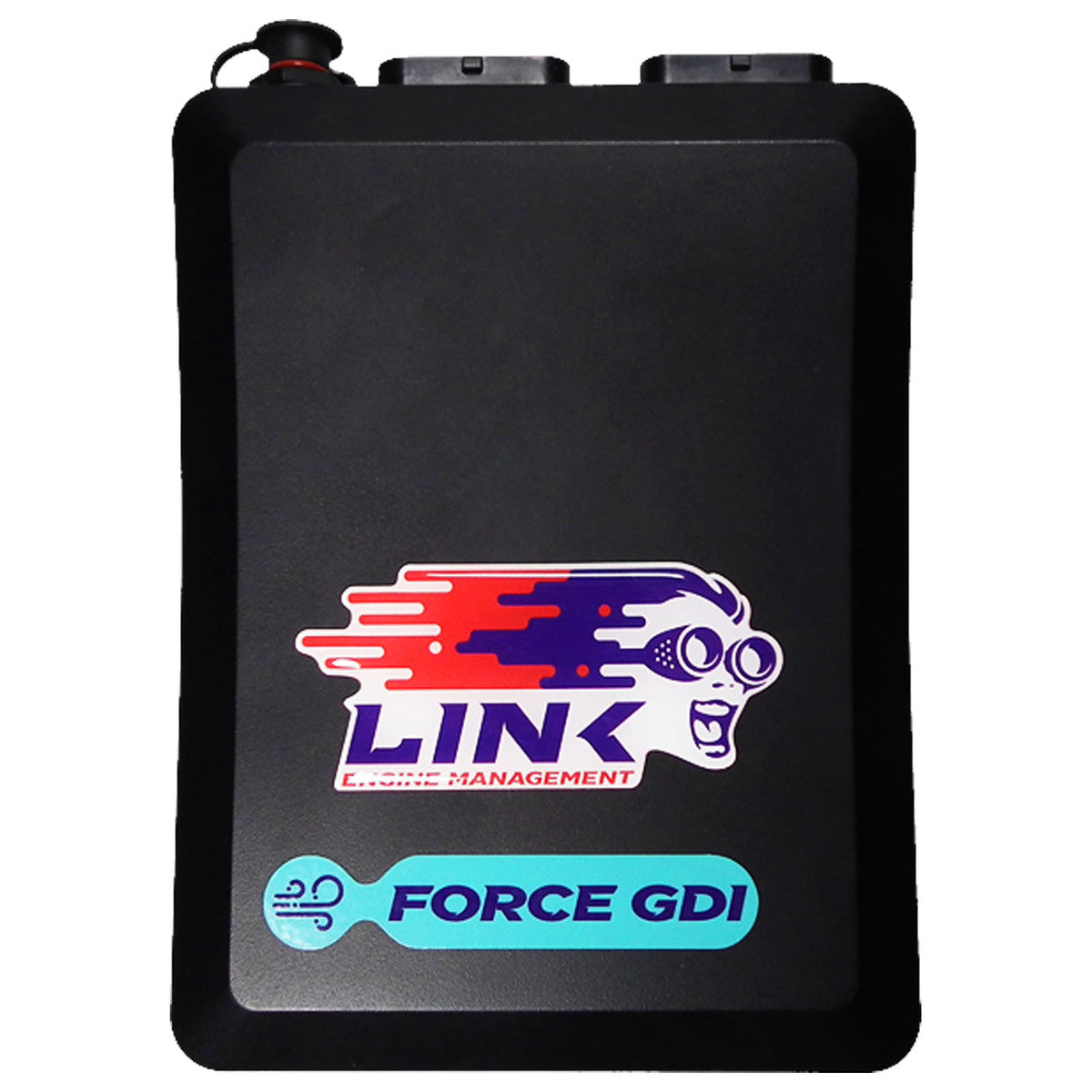

Link G4+ Force GDI

Inputs

8/10* x Digital inputs

4 x Temperature inputs

11 x Analog inputs

2 x Trigger inputs

2 x Knock inputs

1 x LSU 4.9 Wideband lambda sensor input

*2 inputs required when using 2nd CAN Bus

Outputs

4 x High voltage injector drivers (60V 10/5A Peak/Hold Current)

1 x GDI pump/Spill valve driver (11.8/6A Peak/Hold)

4 x Ignition drivers

10 x Auxiliary outputs^

+5V Sensor power supply

+8V Sensor power supply

^unused ignition drives can be used as additional Aux outputs

Communications

2* x CAN bus

1 x Serial (RS232) connection

1 x USB tuning connection

Physical

Dimensions: 185mm(L) x 130mm(W) x 40mm(H) (without looms)

Mass: 680grams

Advanced features found only on the Force GDI:

4 high voltage Boost/Peak/Hold GDI injector drives, user definable voltage, current and durations.

1 Spill valve/GDI pump driver, peak & hold or saturated mode.  User definable current.
