Link CIVICLink (K20X)

Easy to install. Affordable. Reliable.

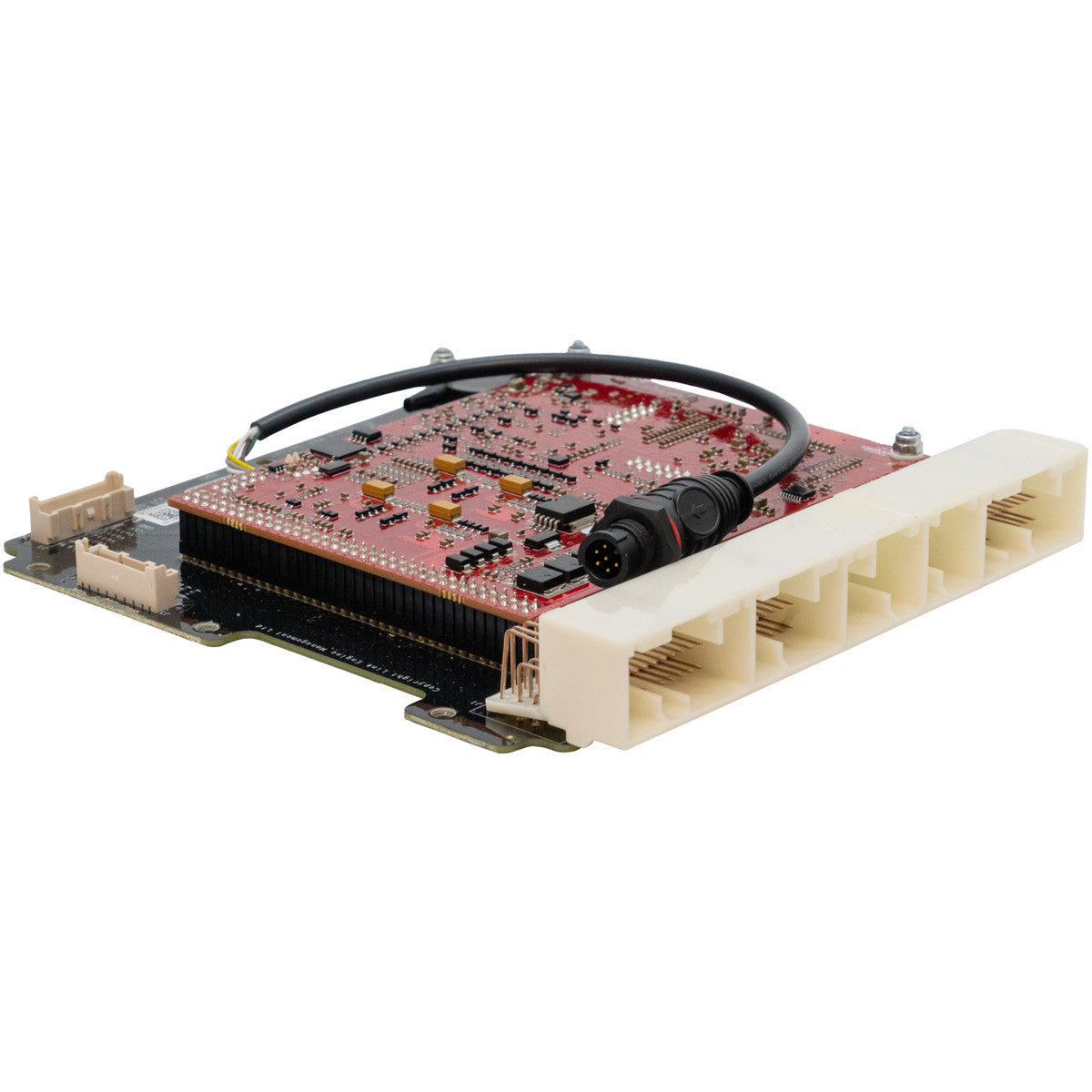

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the K20A engine.

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• ECU includes an onboard 7 bar MAP sensor.
• Most factory features are supported.
• Check the features tab for I/O expansion options


Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection.  Use the CANJST4 (Code 101-0198) cable for connecting CAN devices.  This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices.  The power supply is protected by a self-resetting fuse rated at 3A continuous.

Suitable applications (Manual Transmission only):
Honda Integra Type R DC5 2002-2004 with K20A/K20A2/K20A3 Engine

Acura RSX 2002-2004 with K20A/K20A2/K20A3 Engine

Honda Civic Type R EP3 2001-2005 with K20A Engine

Honda Civic Si/SiR 2001-2005 with K20A3

Honda Civic DX/LX/HX 2001-2005 with D17A1/A2/A3 Engine

Honda CR-V 2002-2004 with K24A1 Engine
