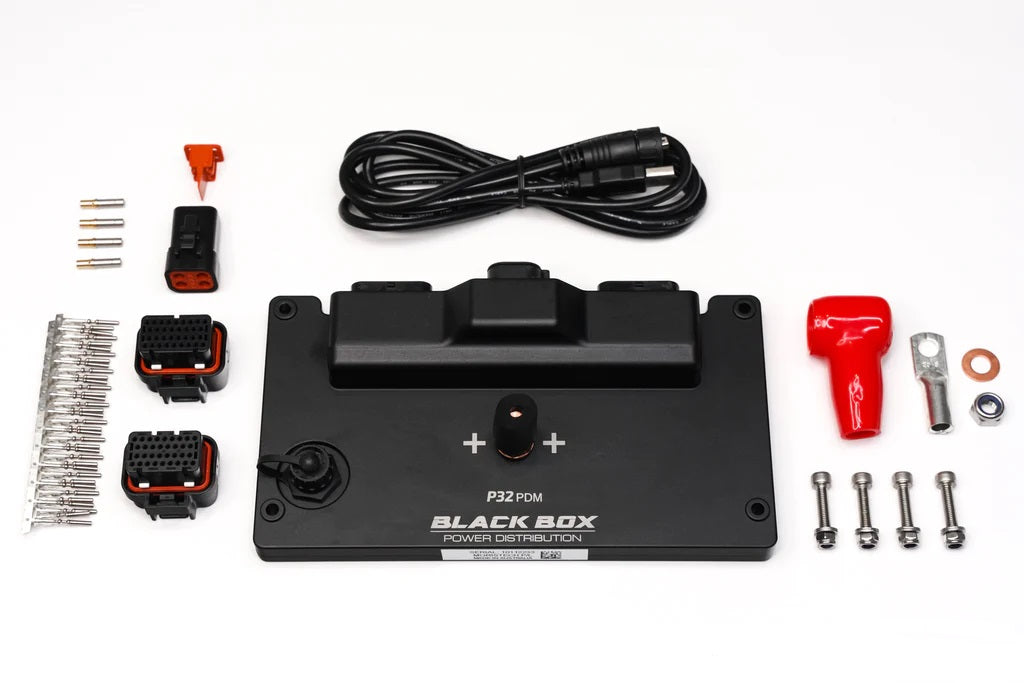

BLACK BOX P32 PDM Power Distribution Module

The P32 Features;

- 4 x 27amp Outputs (PWM Capable) Powered through a DTP Connector for easy termination.

- 2 x 22amp Outputs (PWM Capable).

- 24 x 8amp Outputs.

- 1 x 3amp Output.

- 1 x 3amp Output (PWM and always on capable).

- 25 x Switched Inputs (3 can be temperature sensor controlled via a 2 wire temperature sensor).

- 2 x CAN Bus (compatable with Greyhill keypads).

- 2 x Ground switched Auxiliary Outputs (PWM capable).

- User friendly software.

- Communication Cable.

- 2 x Superseal 34 Pin connectors (1 x alternate keyway) Sockets included.

- 1 x DTP06-4S Connector

- 4 x Mounting hardware

- 1 x 6mm battery eyelet with rubber insulator boot and hardware.
